High quality cheap construction gfrg wall

                      1000 rs per square meter and better than concrete wall certified

                              For know more about Gypsum based building products feel free to contact us.
System in Brief. Glass Fibre Reinforced Gypsum (GFRG) Panel known as Rapidwall is a building panel made-up of calcined gypsum plaster, reinforced with glass fibers

https://www.google.co.in/url?sa=t&source=web&rct=j&url=%23&ved=0ahUKEwjyi8yL7dTVAhXJq48KHWHCChAQwqsBCDEwAw&usg=AFQjCNF1sHlk2z9QIx28jtvfnGP_UlkifA


http://www.frbl.co.in/




Glass Fiber Reinforced Gypsum (GFRG)

  1. 1. ARCHITECTURE DEPARTMENT, SJVN GFRG/RAPID WALL SYSTEM

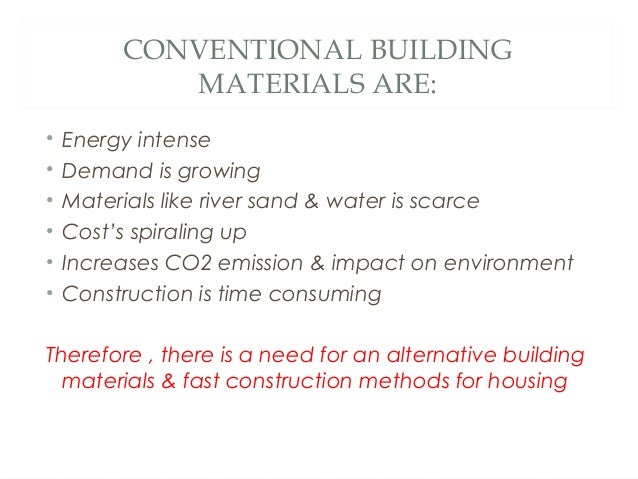

  2. 2. CONVENTIONAL BUILDING MATERIALS ARE: • Energy intense • Demand is growing • Materials like river sand & water is scarce • Cost’s spiraling up • Increases CO2 emission & impact on environment • Construction is time consuming Therefore , there is a need for an alternative building materials & fast construction methods for housing

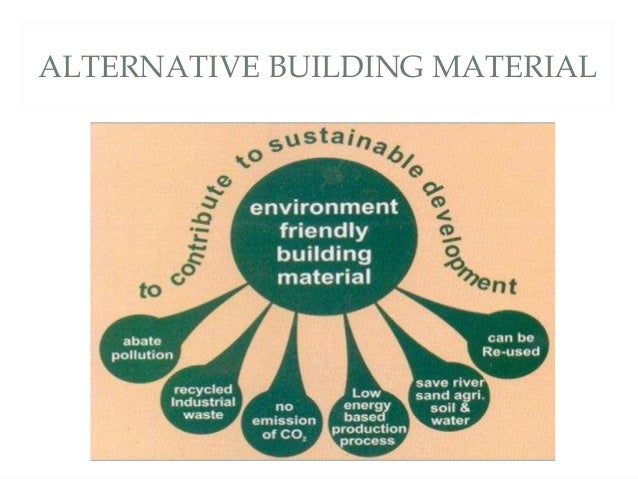

  3. 3. ALTERNATIVE BUILDING MATERIAL
  4. 4. RAPID WALL PANEL

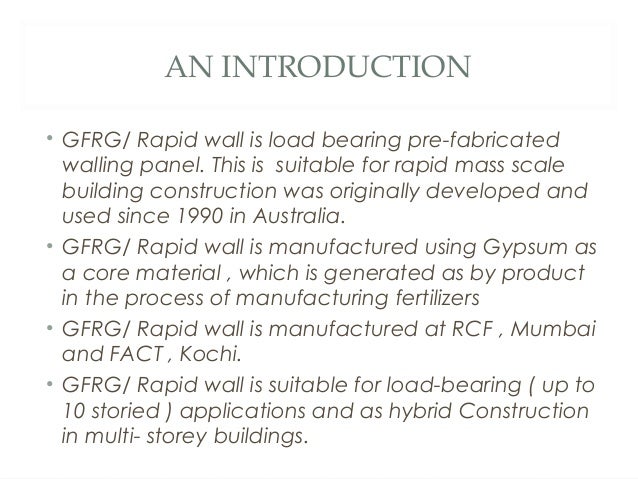

  5. 5. AN INTRODUCTION • GFRG/ Rapid wall is load bearing pre-fabricated walling panel. This is suitable for rapid mass scale building construction was originally developed and used since 1990 in Australia. • GFRG/ Rapid wall is manufactured using Gypsum as a core material , which is generated as by product in the process of manufacturing fertilizers • GFRG/ Rapid wall is manufactured at RCF , Mumbai and FACT , Kochi. • GFRG/ Rapid wall is suitable for load-bearing ( up to 10 storied ) applications and as hybrid Construction in multi- storey buildings.

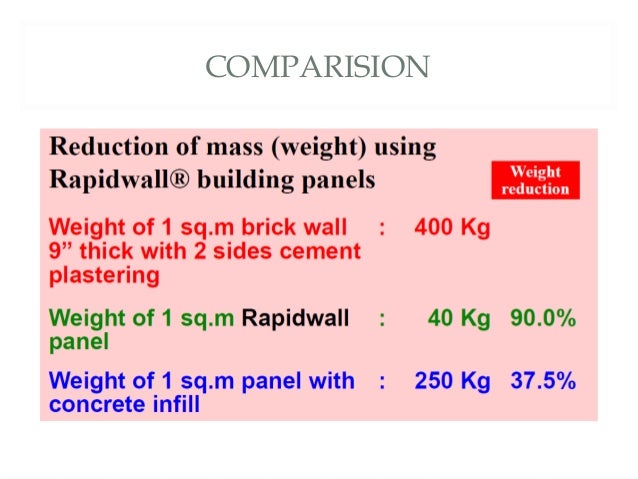

  6. 6. COMPARISION

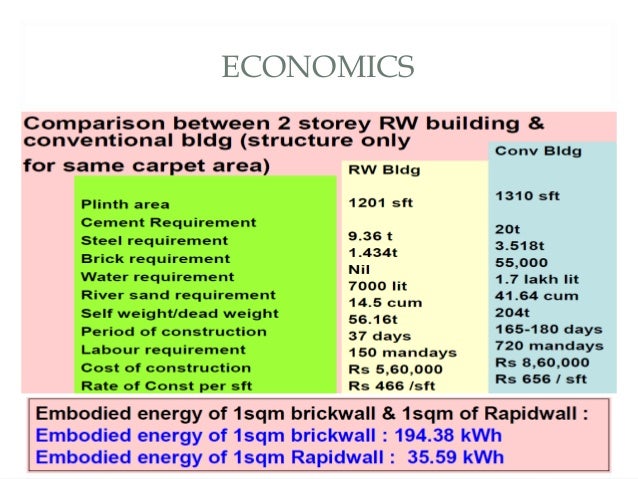

  7. 7. ECONOMICS

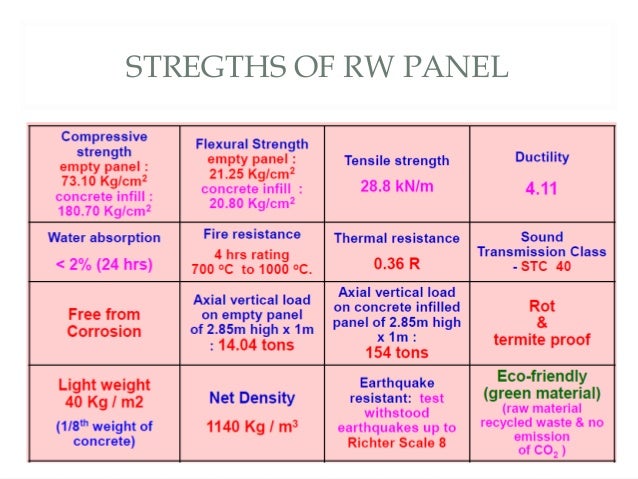

  8. 8. STREGTHS OF RW PANEL

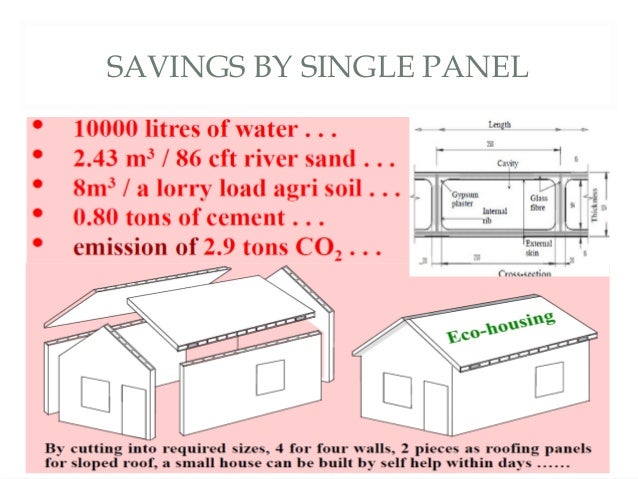

  9. 9. SAVINGS BY SINGLE PANEL

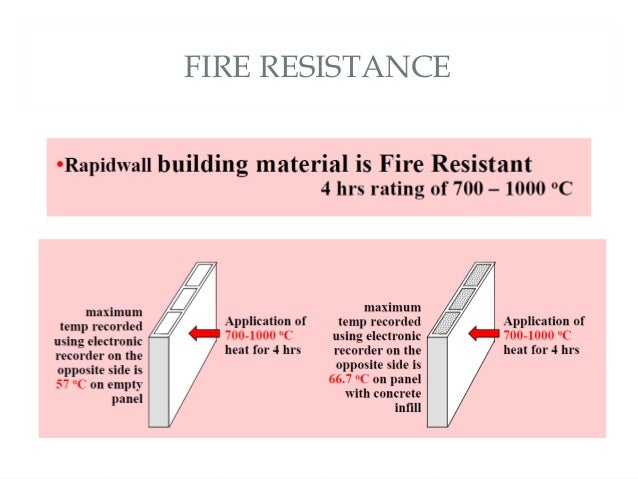

  10. 10. FIRE RESISTANCE
  11. 11. LOAD BEARING CAPABILITY

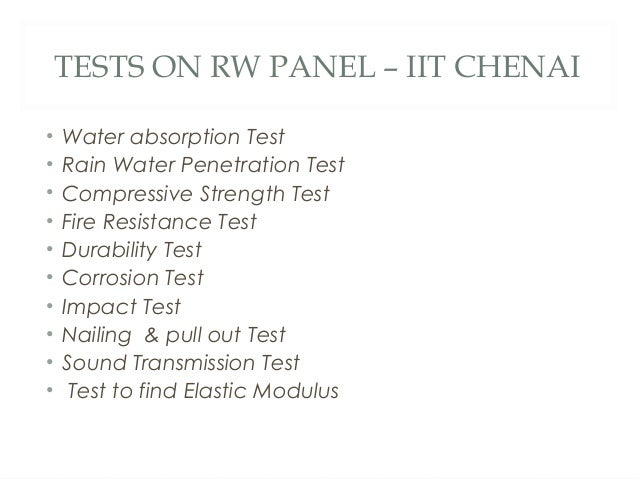

  12. 12. TESTS ON RW PANEL – IIT CHENAI • Water absorption Test • Rain Water Penetration Test • Compressive Strength Test • Fire Resistance Test • Durability Test • Corrosion Test • Impact Test • Nailing & pull out Test • Sound Transmission Test • Test to find Elastic Modulus

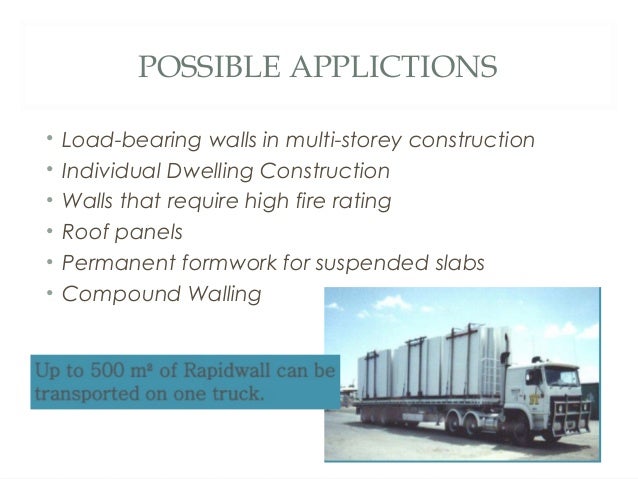

  13. 13. POSSIBLE APPLICTIONS • Load-bearing walls in multi-storey construction • Individual Dwelling Construction • Walls that require high fire rating • Roof panels • Permanent formwork for suspended slabs • Compound Walling

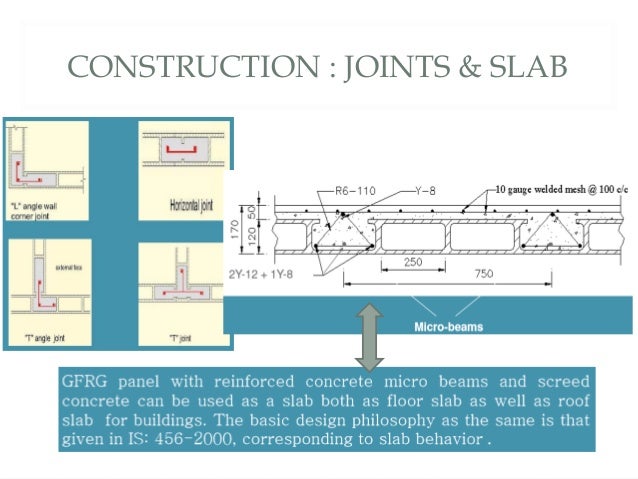

  14. 14. CONSTRUCTION : JOINTS & SLAB

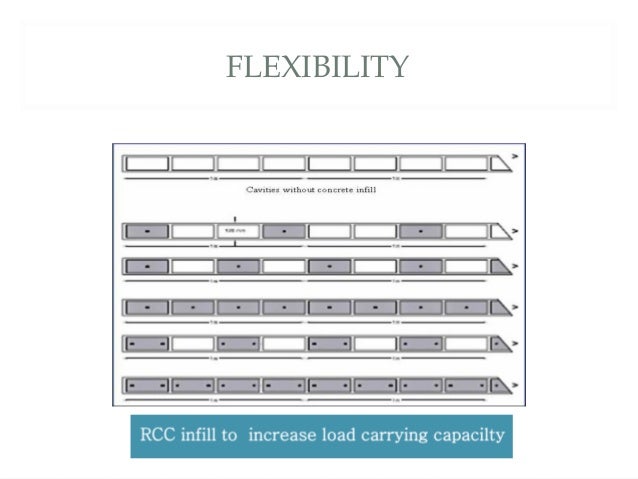

  15. 15. FLEXIBILITY

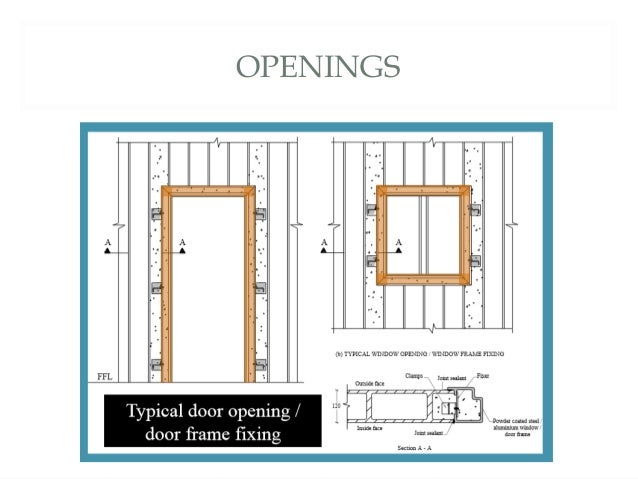

  16. 16. OPENINGS
  17. 17. SANITARY WORK

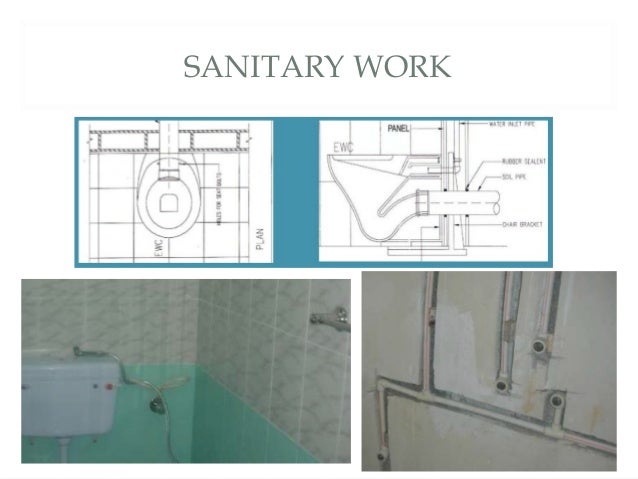

  18. 18. SANITARY WORK

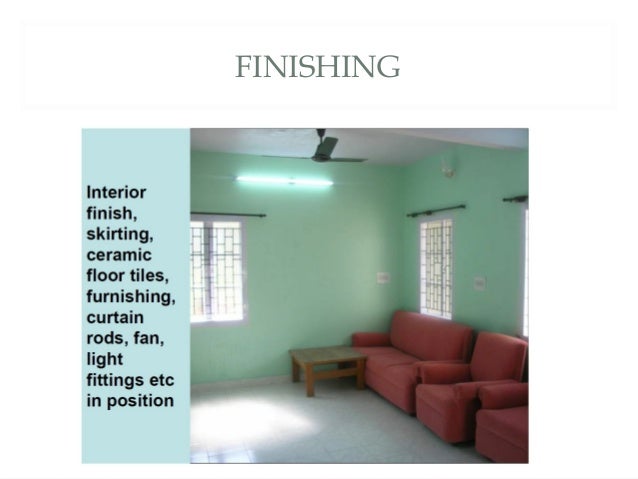

  19. 19. FINISHING
  20. 20. GFRG IN HYBRID BUILDING

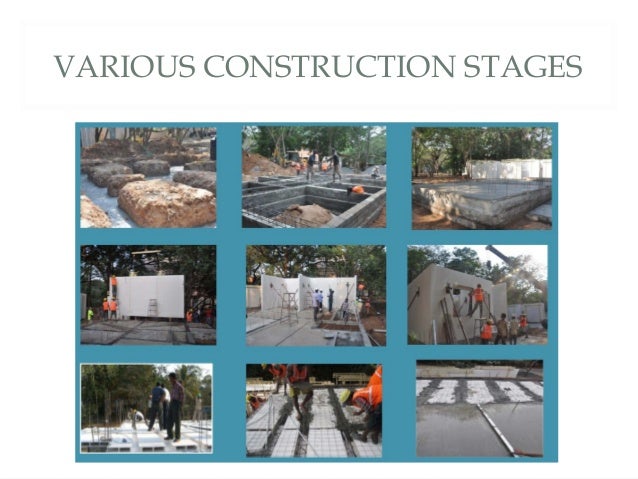

  21. 21. VARIOUS CONSTRUCTION STAGES
  22. 22. BENEFITS • Very fast construction • Reduced hassles of construction with less materials • Saving in transport cost of sand, bricks/concrete blocks, granite metal, cement, steel, water, scaffolding & shuttering materials • Strong & quality construction • Less number of workers • Less overhead cost & less project time • No problem of disposal of waste / debris • Quick turnover with many fold reinvestment per annum bringing more profit

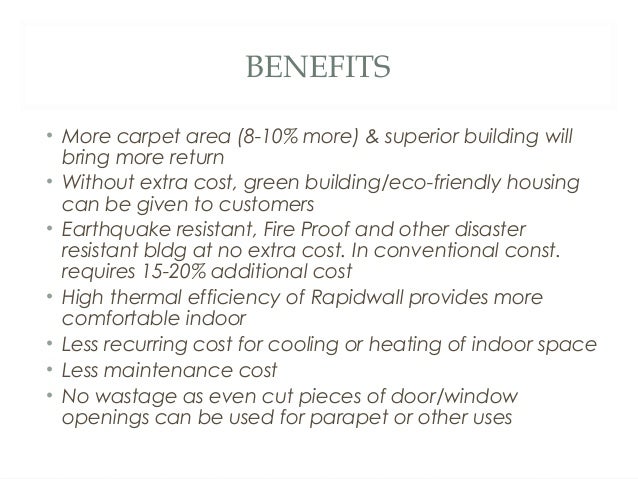

  23. 23. BENEFITS • More carpet area (8-10% more) & superior building will bring more return • Without extra cost, green building/eco-friendly housing can be given to customers • Earthquake resistant, Fire Proof and other disaster resistant bldg at no extra cost. In conventional const. requires 15-20% additional cost • High thermal efficiency of Rapidwall provides more comfortable indoor • Less recurring cost for cooling or heating of indoor space • Less maintenance cost • No wastage as even cut pieces of door/window openings can be used for parapet or other uses

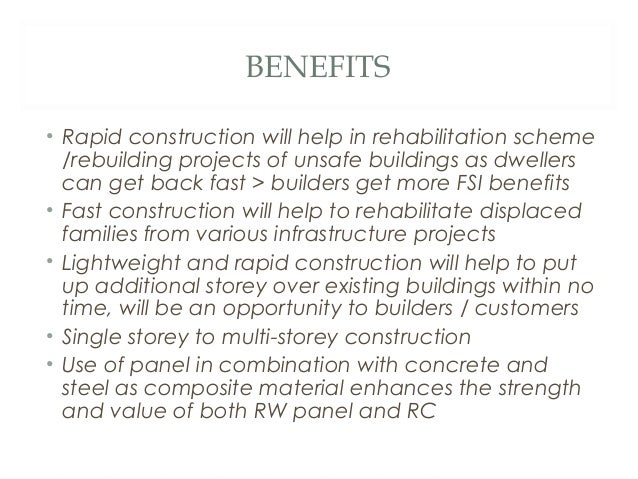

  24. 24. BENEFITS • Rapid construction will help in rehabilitation scheme /rebuilding projects of unsafe buildings as dwellers can get back fast > builders get more FSI benefits • Fast construction will help to rehabilitate displaced families from various infrastructure projects • Lightweight and rapid construction will help to put up additional storey over existing buildings within no time, will be an opportunity to builders / customers • Single storey to multi-storey construction • Use of panel in combination with concrete and steel as composite material enhances the strength and value of both RW panel and RC

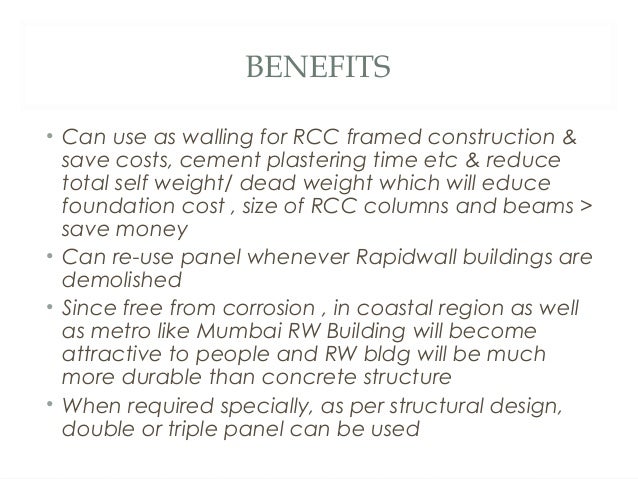

  25. 25. BENEFITS • Can use as walling for RCC framed construction & save costs, cement plastering time etc & reduce total self weight/ dead weight which will educe foundation cost , size of RCC columns and beams > save money • Can re-use panel whenever Rapidwall buildings are demolished • Since free from corrosion , in coastal region as well as metro like Mumbai RW Building will become attractive to people and RW bldg will be much more durable than concrete structure • When required specially, as per structural design, double or triple panel can be used

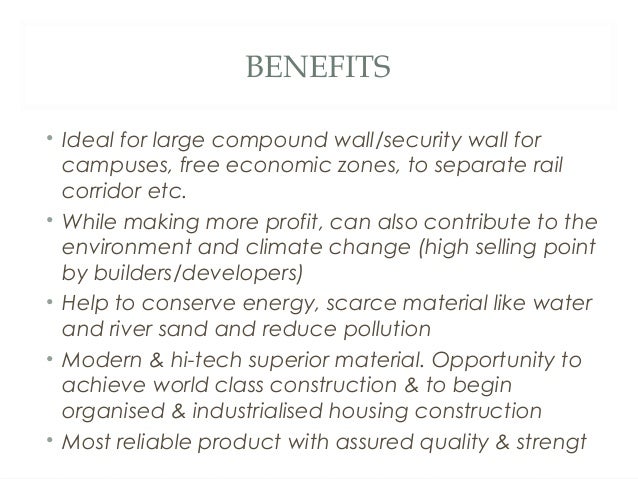

  26. 26. BENEFITS • Ideal for large compound wall/security wall for campuses, free economic zones, to separate rail corridor etc. • While making more profit, can also contribute to the environment and climate change (high selling point by builders/developers) • Help to conserve energy, scarce material like water and river sand and reduce pollution • Modern & hi-tech superior material. Opportunity to achieve world class construction & to begin organised & industrialised housing construction • Most reliable product with assured quality & strengt

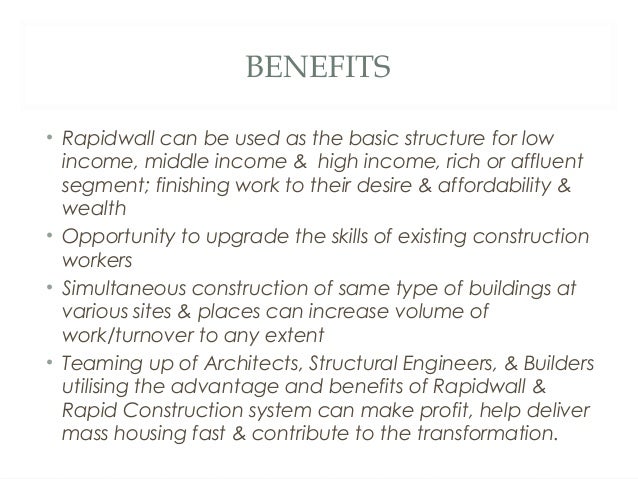

  27. 27. BENEFITS • Rapidwall can be used as the basic structure for low income, middle income & high income, rich or affluent segment; finishing work to their desire & affordability & wealth • Opportunity to upgrade the skills of existing construction workers • Simultaneous construction of same type of buildings at various sites & places can increase volume of work/turnover to any extent • Teaming up of Architects, Structural Engineers, & Builders utilising the advantage and benefits of Rapidwall & Rapid Construction system can make profit, help deliver mass housing fast & contribute to the transformation.
